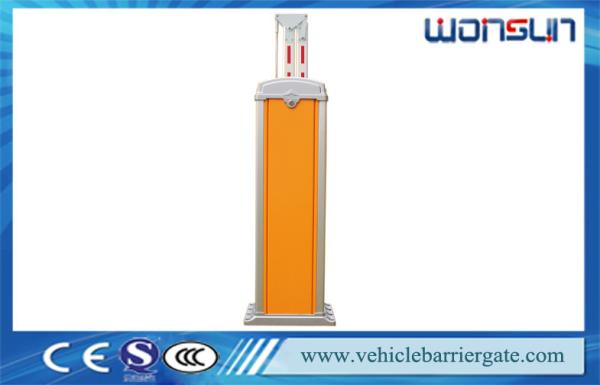

180 Degree Folding Arm Traffic Barrier Gate Have CE , ISO , SGS Approved
Quick Detail:
Name: Traffic Barrier Gate
Speed:6 seconds
Feature:Straight boom
Relative humidity: ≤90%RH
Remote control distance: 30m≤ L ≤ 100m
Model Selection and Differences
|
Model
|
Boom Shape
|
Max Boom Length
|
Speed
|
|
WST1151
|
Straight boom
|
6m
|
6 seconds
|
|
WST1152
|
Straight boom
|
4.5m
|
3 seconds
|
|
WST1153
|
90 degree, Articulated boom
|
5m
|
6 seconds
|
|
WST1154
|
90 degree, Articulated boom
|
3m
|
3 seconds
|
|
WST1155
|
180 degree, Articulated boom
|
5m
|
6 seconds
|
|
WST11556
|
180 degree, Articulated boom
|
3m
|
3 seconds
|
Functions & Features
1)In case of power off, Turn the hand wheel and raise the boom manually.By the time the power is supplied, Lock the clutch delvice to make it working normally again.
2)Crank connecting rod movement structure, and stability
3)Three control buttons: for boom raising,falling and pausing
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
Specifications
| Power supply |
AC220V+-10% 50HZ/60HZ or AC110V+-10% 50HZ/60HZ |
| Net Weight |
46KG (exclude the boom) |
| External Dimensions |
340* 280*1000mm |
| Time for Up/Down |
(1m-3m)1.5s/(4m-6m)6s |
| Working Environment |
-20 to +55 celsius degree |
| Working Distance |
≤50m |
| Protection Class |
IP44 |
| Max. boom length |
6m |
| Package |
one set in one carton |
With WONSUN, your job gets easier.
Because we don’t just create “good” products, that work pretty well.Our thinking is beyond the short-term.We are conceiving, designing and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative,that will improve your performance and enhance your skills;and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.
Service items
1.One year's free servicing is supplied( not including the arm)
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltae.
